- ★DLP projection technology, chip size 0.8 inches
- ★Brightness ≥ 18,000 lumens, contrast ≥ 1,000,000:1 / 20,000 lumens, contrast ≥ 1,000,000:1
- ★Laser solid-state light source, light source life: “Eco: 25,000 hours, high brightness mode 20,000 hours
- ★Physical resolution WUXGA (1920*1200), 16:10 (standard), 16:9 \ 4:3 \ 16:6 (compatible)
- ★The optical engine system adopts a telecentric optical path design, JBMA uniformity 95%
- ▲Support 3D function, HDMI input supports 120Hz 3D
- ▲Lens projection ratio: optional, 1.6x optical zoom
- ★Projection displacement 50% (horizontal electric), 110% (vertical electric)
- ▲Trapezoidal adjustment (four-corner adjustment) vertical/horizontal direction +/- 30 degrees, four-corner correction

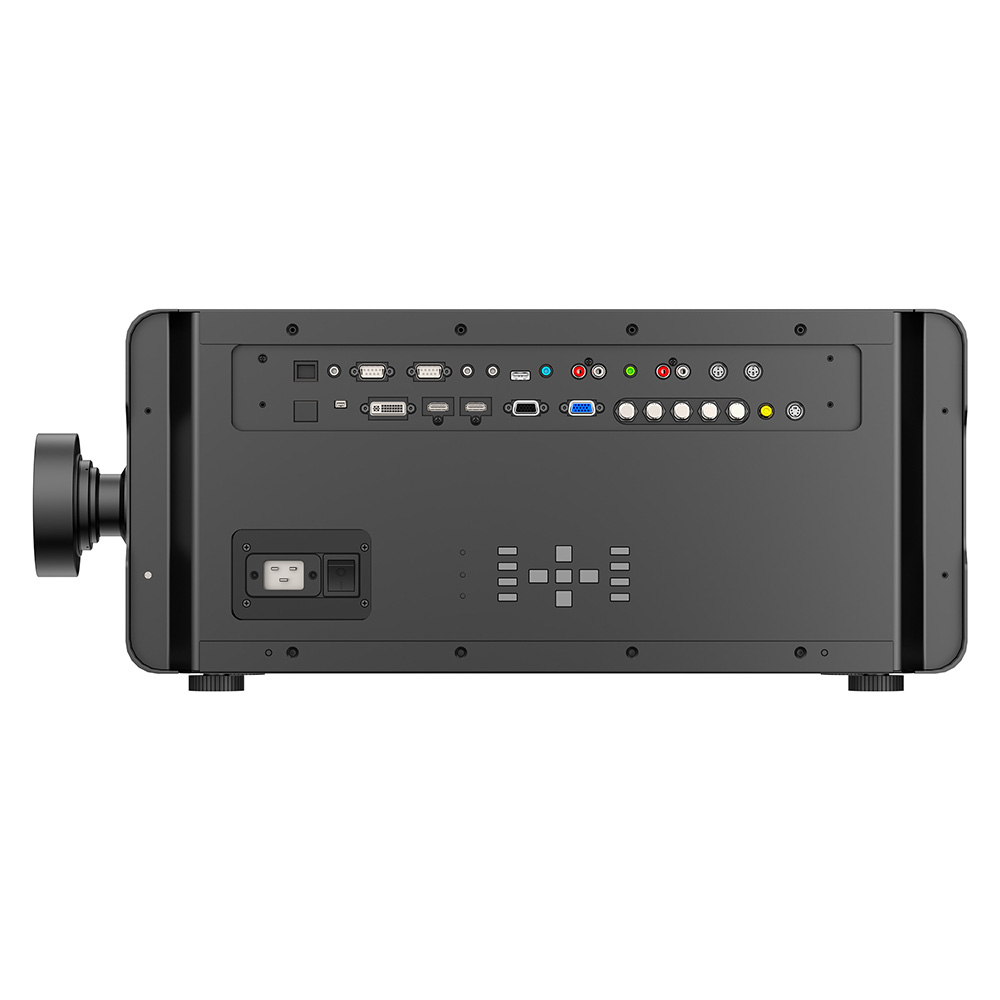

- ▲Input interface: VGA computer input × 1, DVI-d ×, 1, HDMI × 2, BNC*5 × 1, Video RCA × 1, Audio × 1, S-terminal × 1, HD BaseT × 1
- Output port: VGA OUTx 1, 3D SYNC OUTx 1
- Control port: Mini USBxl, RS232 inputxl, RS232 outputxl, LAN control (RJ45)xl
- ▲Original full-excitation light source technology, eliminating the damage of short-wave blue light to the retina, no radiation, no speckle effect;
- ▲The waterproof integrated light engine has a fully enclosed design for the light source and light machine, and the protection level of the core components reaches IP68 level
- ▲The back-in and left-out + liquid cooling heat dissipation method is adopted, and an air guide channel is set inside to increase the air flow and heat dissipation
- ▲Using the unique Current variable frequency control system, automatic dark field adjustment function
- Support 360-degree projection, one-button screen cover (software Blank), timed automatic power on and off
- Power consumption: 1200W in high brightness mode of the whole machine, energy-saving mode; 960W standby <0.5W
- Noise (typical) 40DB TBD
- Net weight 32Kg
- Dimensions 600*260*510mm
