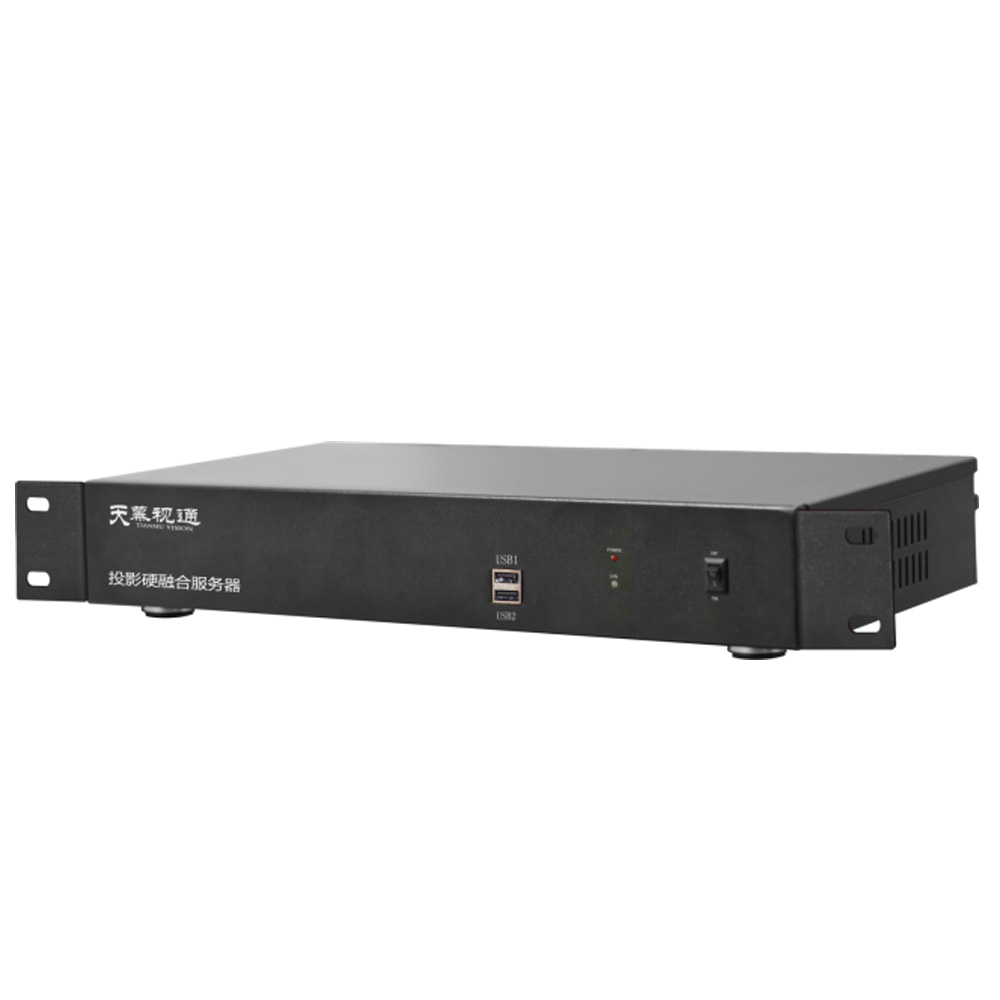

Projection image fusion device (server)

Machine interface：

1. Input interface: 1*HDMI IN supports 4K signal input;
2. Output interface:1-9*HDMI OUT Each HDMI OUT supports 2K signal output;
3. Other interfaces: 2*COM, 1*gigabit network port, 1* fiber optic,
1*AV audio, 2*SATA port, 2*USB2.0, 1*USB3.0;
4. Storage: 180G industry’s largest standard storage;

Functional introduction：

1. A truly embedded pure hardware ARM architecture will not be infected with viruses and will be maintained without maintenance;
2. The fusion device is an accurate and efficient professional geometric correction algorithm, which can perform geometric deformation correction on various types of projection screens such as flat screens, arc screens, folded screens, and circular screens;
3. Fusion supports edge feathering, color gamut correction, tone processing, dark field processing and other functions;
4. Visual debugging mode, the effect is simple and easy to understand, and easy to operate. Supports remote network debugging, and debugging engineers can remotely debug projects without going to the site (industrially created in the industry);
5. The fusion device has its own central control function and supports one-click switch projectors, saving users the cost of purchasing central control;
6. The fusion device fusion belt has no color difference in solid colors such as white, red, blue, etc., no delay in playing action movie materials, and supports meeting system playback of PPT, WORD\EXCEL and other files without color difference;
7. Built-in high-definition playback system, supports 4K\8K\12K\16K ultra-high-definition material playback, local storage 180G comes with more than 600 sets of 4K\8K\12K\16K ultra-high-definition material, and more than 3,000 sets of materials in the cloud. New materials are updated every month through the cloud, and the materials will always remain fresh, so that your box will never fall behind;
8. The fusion device can open windows at will, the number of windows is not limited, the position of the window can be moved at will, the shape of the window can be changed at will, the window borders can be added at will, and in short, the window can be changed in a word. Users can use their creative ability to create various windows. Improve artistry and entertaining;
9. Support image rotation, and can be inverted 180° and left and right side-to-side and side-to-side image;
10. Each HDMI output port of the fusion device supports audio output to the projector, which meets the requirements of some customers who need sound but do not want to distribute the audio system;
11. The only projection hard fusion server in the industry that supports multiple projectors to stack and brightness enhancement;
12. Supports USB drive playback function, making it convenient and simple for users to play their own materials;
13. Support intelligent linkage with song lighting scenes of Haimei, Shiyi, Leishi, Yinchuang, Sunshine, Juhi, Yinwang, Yiying and other song ordering systems, and automatically switch different styles of materials in different scenes, so that users can enjoy an immersive experience and linger;
14. Supports functions such as mobile phone and tablet on-demand materials, switching materials, downloading materials, sending barrage and photo walls, switching projectors, etc.;
15. Supports synchronous playback between multiple fusion devices;
16. Supports 7*24 hours of operation; 12V5A power supply input, 35W power, 0℃~50℃ working temperature;

Machine weight：2.0KG

Machine size：420*210*90mm
